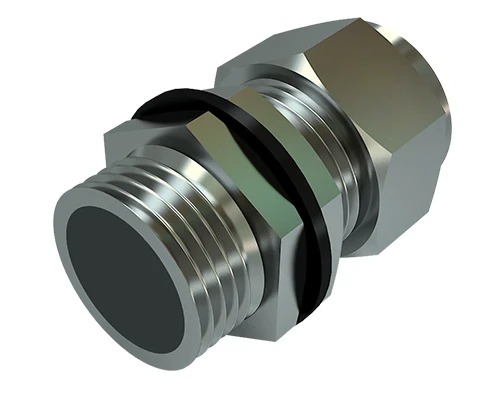

Single Compression Through Glands For Unarmoured Cable (Weatherproof)
Crafted specifically for unarmored/flexible cables in accordance with IS/BS/IEC standards, these glands are engineered for reliability. Primarily made from brass, they are also available in SS304/316 and Aluminum variants to suit diverse requirements. Featuring a single rubber seal, these glands ensure a secure grip on the cable outer sheath. Brass glands are nickel-plated for corrosion resistance, while SS and Aluminum variants undergo treatment with an ultrasonic bath for added durability. With IP protection up to IP-66 levels, AE Single Compression Through Glands offer peace of mind for reliable cable management in various climatic conditions.
Product Details
| DESCRIPTION | MATERIAL |
|---|---|
| Outer Seal | Nitrile / Neoprene Rubber |
| Sealing Nut | Brass |
| Gland Body | Brass |
| Inner Seal | Nitrile / Neoprene Rubber |
| Flat Washer | Nitrile / Neoprene Rubber |
| Check Nut | Brass |
| Gland Barrel | Brass |
| Thread | ET/Metric/NPT (Without check nut) |
| IP Rating | IP-66 |
| Operating Temperature | -20°C to +80°C |
| Finish | Nickel Plated |
Technical Specifications
| AE CAT. NO | B | A | A/F E | A/C E1 | Nipple thread Inch C | D | Acceptable cable OD (mm) |
|---|---|---|---|---|---|---|---|
| BCT-001SS | 11 | 14 | 22 | 25 | 3/4" | 12 | 5-10 |
| BCT-001S | 14 | 14 | 22 | 25 | 3/4" | 12 | 10-13.5 |
| BCT-001 | 15 | 15 | 24 | 27.5 | 3/4" | 12 | 11-14.5 |
| BCT-01 L | 20 | 19 | 28 | 31 | 1" | 15 | 14-18 |
| BCT-02 | 20.5 | 20.5 | 30 | 35 | 1" | 15 | 18-20 |
| BCT-03 SP | 23 | 23 | 32 | 36.5 | 28mm | 15 | 20-23 |
| BCT-04 L | 28 | 27 | 37 | 43 | 1-1/4" | 15 | 23-26 |
| BCT-05 L | 31 | 31 | 41 | 47 | 1-1/2" | 20 | 26-30 |
| BCT-06 SP | 35 | 34 | 47 | 54 | 40mm | 20 | 30-33 |
| BCT-07 SP | 39 | 37 | 52 | 59 | 42mm | 20 | 33-36 |
| BCT-08 | 43 | 43 | 55 | 63 | 2" | 20 | 36-41 |
| BCT-09 | 47 | 45 | 57 | 66 | 2" | 20 | 41-44 |
| BCT-010 L | 54 | 54 | 67 | 77 | 2-1/2" | 20 | 44-52 |
| BCT-011S | 56 | 56 | 70 | 81 | 2-1/2" | 20 | 52-55 |
| BCT-011 L | 61 | 60 | 80 | 92 | 70mm | 20 | 55-60 |
| BCT-012 | 68 | 67 | 84 | 97 | 3" | 20 | 60-66 |
| BCT-013S L | 73 | 72 | 90 | 103 | 3-1/4" | 20 | 66-72 |
| BCT-013 | 79 | 78 | 99 | 113 | 3-1/2" | 20 | 72-78 |
| BCT-014 | 85 | 84 | 105 | 118 | 3-3/4" | 20 | 78-83 |
| BCT-015 | 95 | 94 | 113 | 128 | 4" | 20 | 83-93 |
| BCT-016 | 106 | 105 | 125 | 140 | 4-1/2" | 20 | 93-104 |
